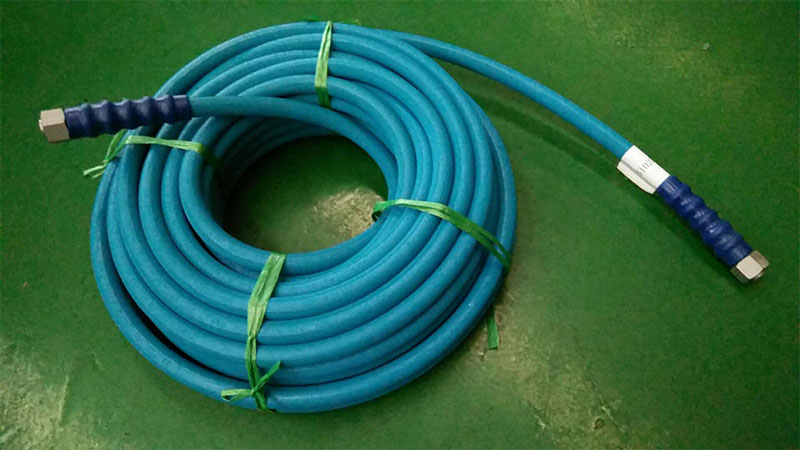

Chemical workshops, pharmaceutical factories, electroplating plants and fine chemical processing lines need to transport various acidic, alkaline and solvent-based chemical fluids daily. Conventional rubber and plastic hoses easily suffer inner lining swelling, dissolution and perforation after long-term contact with corrosive media, leading to medium leakage, pipeline failure and production safety accidents. Fluororubber lined composite chemical hose ranging from DN15 to DN200 is developed to solve corrosion problems. As industrial chemical delivery hose with strong acid and alkali resistance, it realizes safe transportation of diverse corrosive chemicals and meets the long-cycle stable operation needs of chemical production pipelines.

The core anti-corrosion performance of this chemical hose comes from the fluororubber inner lining layer. Fluororubber features stable chemical inertness, resisting erosion by strong acid, strong alkali, organic solvents, oxidizing agents and most corrosive industrial liquids. The lining will not swell, dissolve, crack or shed impurities after long-time fluid scouring. It prevents chemical media from penetrating the outer structural layers and avoids medium contamination caused by pipeline material shedding. Compared with ordinary rubber and PVC lined hoses, fluororubber lining adapts to wider types of chemical reagents and longer continuous conveying cycles.

The whole pipe body adopts layered composite design to coordinate corrosion resistance, pressure resistance and bending performance. The innermost layer is dense fluororubber serving as the anti-corrosion barrier. The middle reinforcing layer uses fiber braiding or steel wire winding according to pressure grades, bearing internal fluid pressure to prevent pipe bulging and rupture. The outer protective rubber layer delivers wear resistance, weather resistance and aging resistance, protecting the inner functional layers from outdoor sunlight, workshop friction and mechanical collision damage. All layers are tightly integrated via integrated compound vulcanization, avoiding interlayer separation and liquid permeation under long working cycles.

The full specification range from DN15 to DN200 forms a clear caliber matching system for chemical conveying engineering. Small calibers DN15, DN20, DN25 are applied to laboratory pipelines, small reaction kettle branch pipelines and precision chemical dosing lines with low flow and narrow installation space. Medium calibers DN32 to DN100 are mainstream sizes for factory production line circulation, electroplating tank liquid delivery and conventional chemical transfer between storage barrels and reaction equipment. Large calibers DN125, DN150, DN200 are used for main pipelines connecting chemical storage tanks and tank trucks, supporting large-volume bulk chemical transportation to reduce pipeline flow resistance.

The fluororubber lined chemical hose retains moderate flexibility, convenient for bending layout around chemical equipment, tank bodies and pipe supports. All DN15-DN200 specifications are compatible with common industrial flanges, threaded joints and hose clamps, supporting on-site fixed-length cutting and quick assembly. Before delivery, all hoses pass strict tests including acid and alkali soaking test, hydrostatic pressure test, air tightness test and interlayer bonding test. Qualified products eliminate leakage risks under rated pressure, adapting to indoor workshop closed circulation and outdoor chemical loading and unloading conditions.

This acid alkali resistant industrial delivery hose applies to multiple chemical industries. It covers transportation of hydrochloric acid, sulfuric acid, sodium hydroxide, potassium hydroxide and various mixed corrosive liquids in electroplating, chemical synthesis, wastewater treatment, pesticide processing and new material production. The fluororubber lining adapts to frequent switching of different chemical media, lowering the need for pipeline replacement when production formulas change. Multi-caliber options facilitate overall pipeline design for small pilot workshops and large-scale chemical plants alike.

With the expansion of fine chemical and environmental protection industries, chemical types become more complex, raising higher requirements for pipeline corrosion resistance and specification richness. Product optimization mainly focuses on improving fluororubber flexibility, enhancing composite interlayer bonding strength and optimizing low-temperature performance while keeping full DN15-DN200 caliber coverage. Upgraded fluororubber lined composite hoses will provide safer, more versatile anti-corrosion fluid transmission solutions for all industrial chemical delivery scenarios.
